Input Configuration

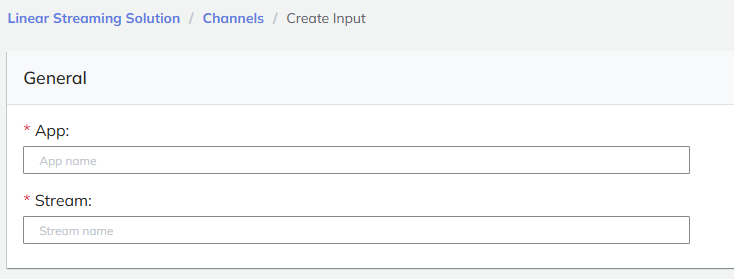

General
| Parameter | Description |
|---|---|
| App | Enter the app name, support a-z, 0-9, and _ (underscore). The app name is part of the stream identifier and the playback URL |
| Stream | Enter the stream name, support a-z, 0-9, and _ (underscore). The stream name is also part of the stream identifier and playback URL |

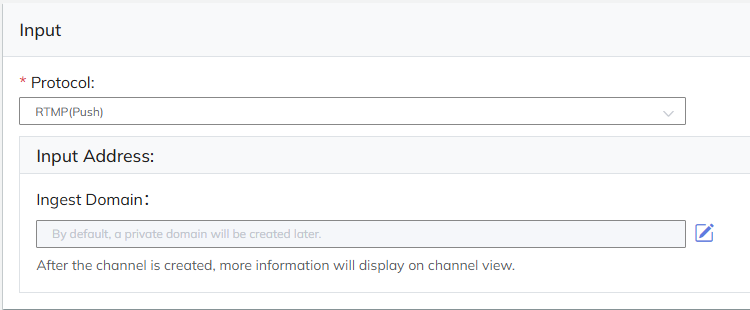

Input
| Parameter | Description |
|---|---|
| Input Protocol | Support RTMP (push), SRT, SRT (pull), MPEG-TS over UDP (unicast), and MPEG-TS over UDP (multicast). For SRT and MPEG-TS, video, audio, and subtitle track PIDs must be provided. Audio and subtitle tracks support multiple tracks for multi-language configuration |
Advanced Configuration

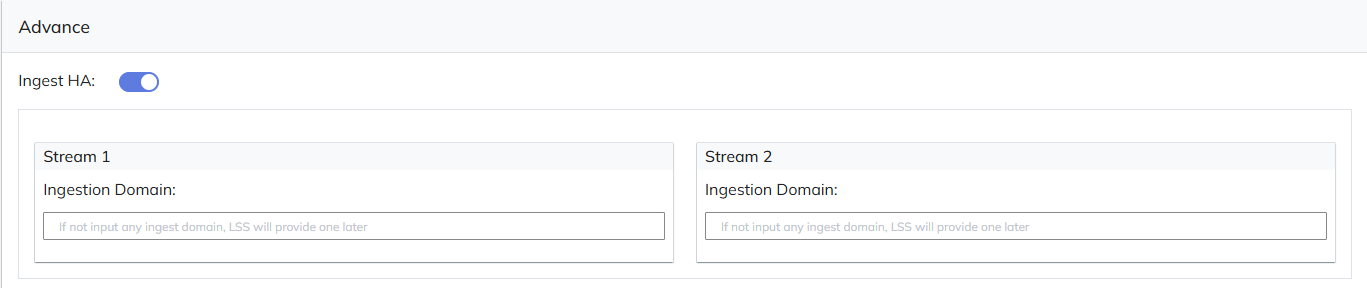

Ingest HA
Support multiple RTMP ingest streams for high availability. Support the user's own ingest domain; otherwise, LSS will automatically assign one (recommended to minimise DNS setup).
Dynamic Ad Insertion
Supports SCTE-35 control signals within SRT or MPEG-TS streams to enable both Client-Side Ad Insertion (CSAI) and Server-Side Ad Insertion (SSAI).
tip
This feature typically requires integration with the user's advertising platform. The SCTE-35 track PID must be specified during configuration.

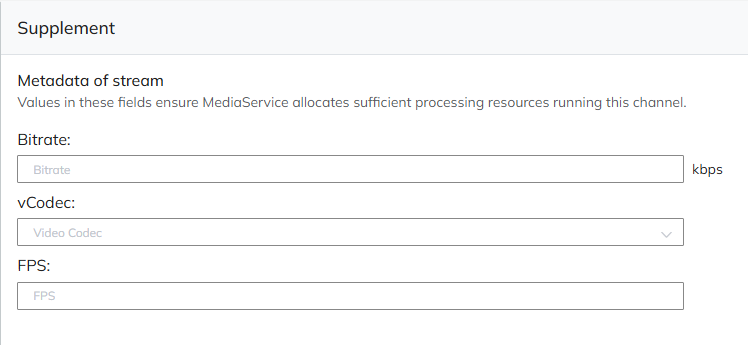

Supplement
Allocate sufficient processing resources for the channel.
| Parameter | Description |
|---|---|
| Bitrate | Expected average bitrate |
| vCodec | Video codec. Support H.264/AVC, H.265/HEVC |
| FPS | Frames per second |

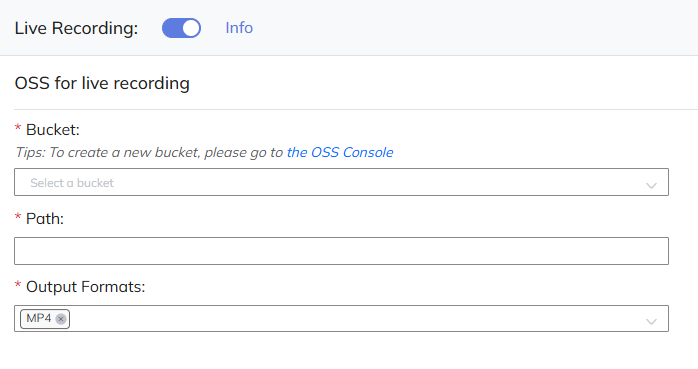

Live Recording
Enable recording directly from the input RTMP stream and uploading to a specified OSS bucket.
| Parameter | Description |
|---|---|
| Bucket | Create or select an OSS bucket |
| Path | Configure the recording storage path |
| Output Format | Supported formats include MP4, HLS, and DASH |
