Standard CSI Storage

Standard CSI storage provides local persistent volumes for your Kubernetes workloads.

note

Standard storage is block storage that binds to a specific node. It does not support ReadWriteMany access mode across multiple nodes. For shared storage across nodes, use NFS storage instead.

Setup

1. Create Storage Class

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: standard
  annotations:
    storageclass.kubernetes.io/is-default-class: "true"
provisioner: vcloud.csi.vnetwork.dev
parameters:
  fsType: "ext4"
  uid: "1001"
  gid: "1001"
  permission: "0755"
  mountFlags: "noatime,nodiratime"
allowVolumeExpansion: true
#volumeBindingMode: WaitForFirstConsumer
reclaimPolicy: Retain

2. Create PVC

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: example-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
  storageClassName: standard

Usage Example

apiVersion: apps/v1
kind: Deployment
metadata:
  name: app
spec:
  replicas: 1
  selector:
    matchLabels:
      app: example
  template:
    metadata:
      labels:
        app: example
    spec:
      containers:
        - name: app
          image: nginx
          volumeMounts:
            - name: storage
              mountPath: /data
      volumes:
        - name: storage
          persistentVolumeClaim:
            claimName: example-pvc

Managing Volume Snapshots

Standard CSI storage volumes support snapshot management through the cloud infrastructure interface.

Volume Snapshots Overview

Volume snapshots provide point-in-time backups of your storage volumes, allowing you to:

• Create backups before making changes
• Restore volumes to previous states
• Migrate data between instances

Creating Snapshots

1. Navigate to your instance in the cloud console
2. Go to the Instance Volumes section
3. Click Create Snapshot for the desired volume
4. Provide a snapshot name and description

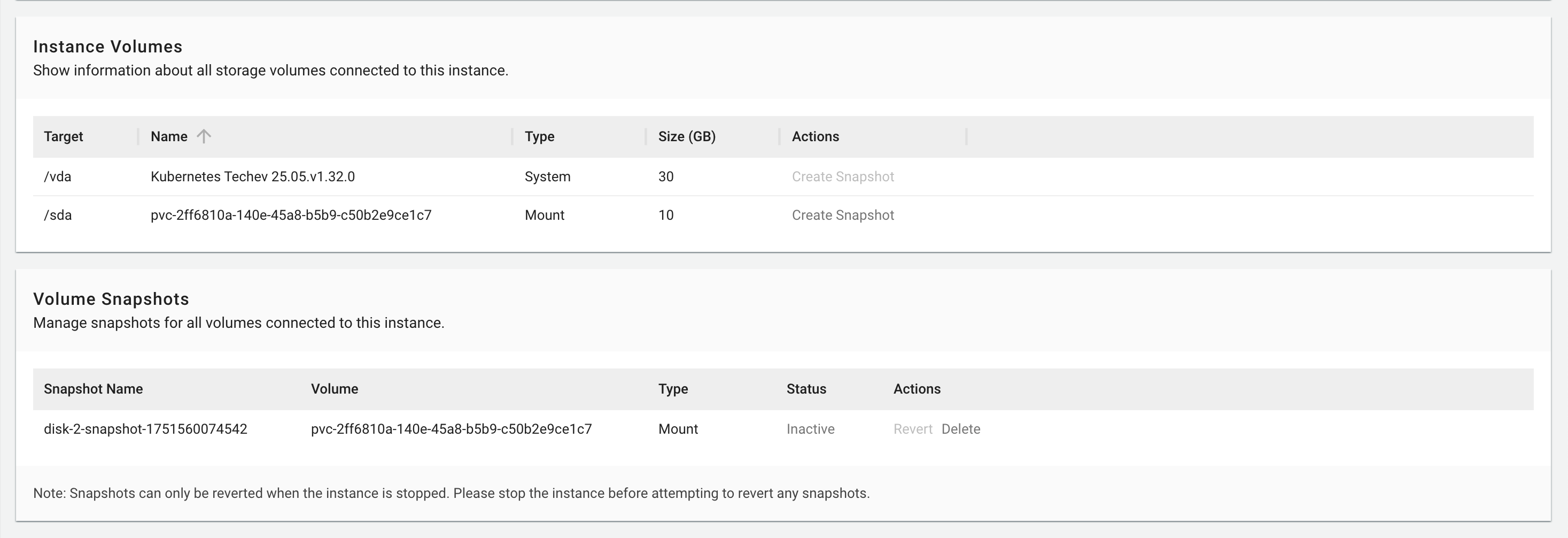

Managing Snapshots

In the Volume Snapshots section, you can:

• View all snapshots with their status and details
• Revert volumes to previous snapshot states
• Delete snapshots when no longer needed

Snapshot Operations

Action	Description	Requirements
Create	Take a point-in-time backup	Volume must be attached
Revert	Restore volume to snapshot state	Instance must be stopped
Delete	Remove snapshot permanently	Snapshot must be inactive

note

Important: Snapshots can only be reverted when the instance is stopped. Please stop the instance before attempting to revert any snapshots. CSI Snapshot: Expect snapshot support for this CSI-level in the near future, as we're prioritizing its implementation.

Troubleshooting

# Check PVC status
kubectl get pvc example-pvc
kubectl describe pvc example-pvc
