Viewing NodeGroups
View and manage Kubernetes NodeGroups through the management interface.

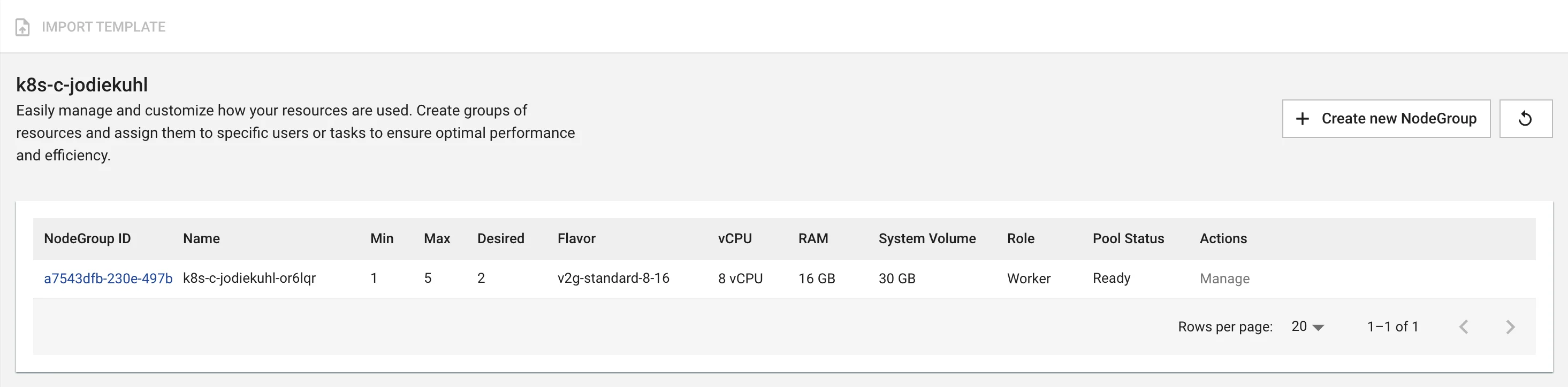

Accessing NodeGroups
- Navigate to cluster details page
- Click "NodeGroups" tab in cluster navigation
- View all NodeGroups in management interface

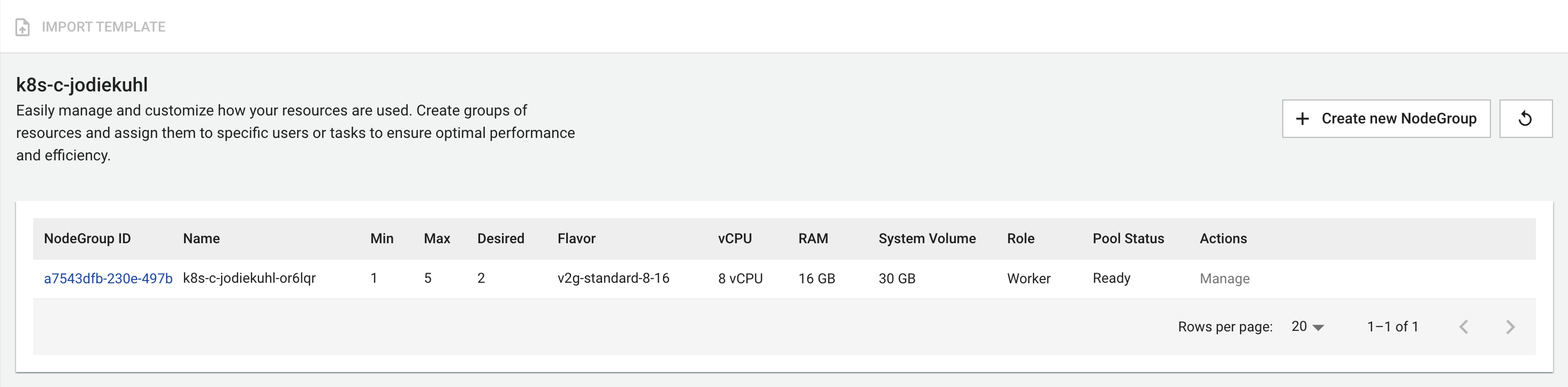

NodeGroups interface showing all available NodeGroups with their configurations
NodeGroup Information
Basic Details
- NodeGroup ID: Unique identifier (clickable for details)
- Name: Descriptive NodeGroup name
- Role: NodeGroup function (typically Worker)
Scaling Configuration
- Min: Minimum number of nodes
- Max: Maximum number of nodes
- Desired: Target number of nodes
Hardware Specifications
- Flavor: Instance type (e.g., "v2g-standard-8-16")
- vCPU: Virtual CPU cores
- RAM: Memory allocation (in GB)
- System Volume: Storage size (in GB)
Status & Actions
- NodeGroup Status: Current state
- Actions: Management options (Manage, Destroy buttons)
Status Indicators
| Status | Description |
|---|---|
| Ready | NodeGroup is operational |
| Creating | NodeGroup is being created |
| Scaling | Adding or removing nodes |
| Updating | Configuration changes in progress |
| Error | Requires investigation |
Available Actions
Manage Button
- Access detailed NodeGroup management interface
- View individual nodes, metrics, and configuration
- Available for NodeGroups in "Ready" state
Destroy Button
- Safely delete the NodeGroup
- Includes multiple confirmation steps and safety checks
- Only shown when deletion is safe and permitted

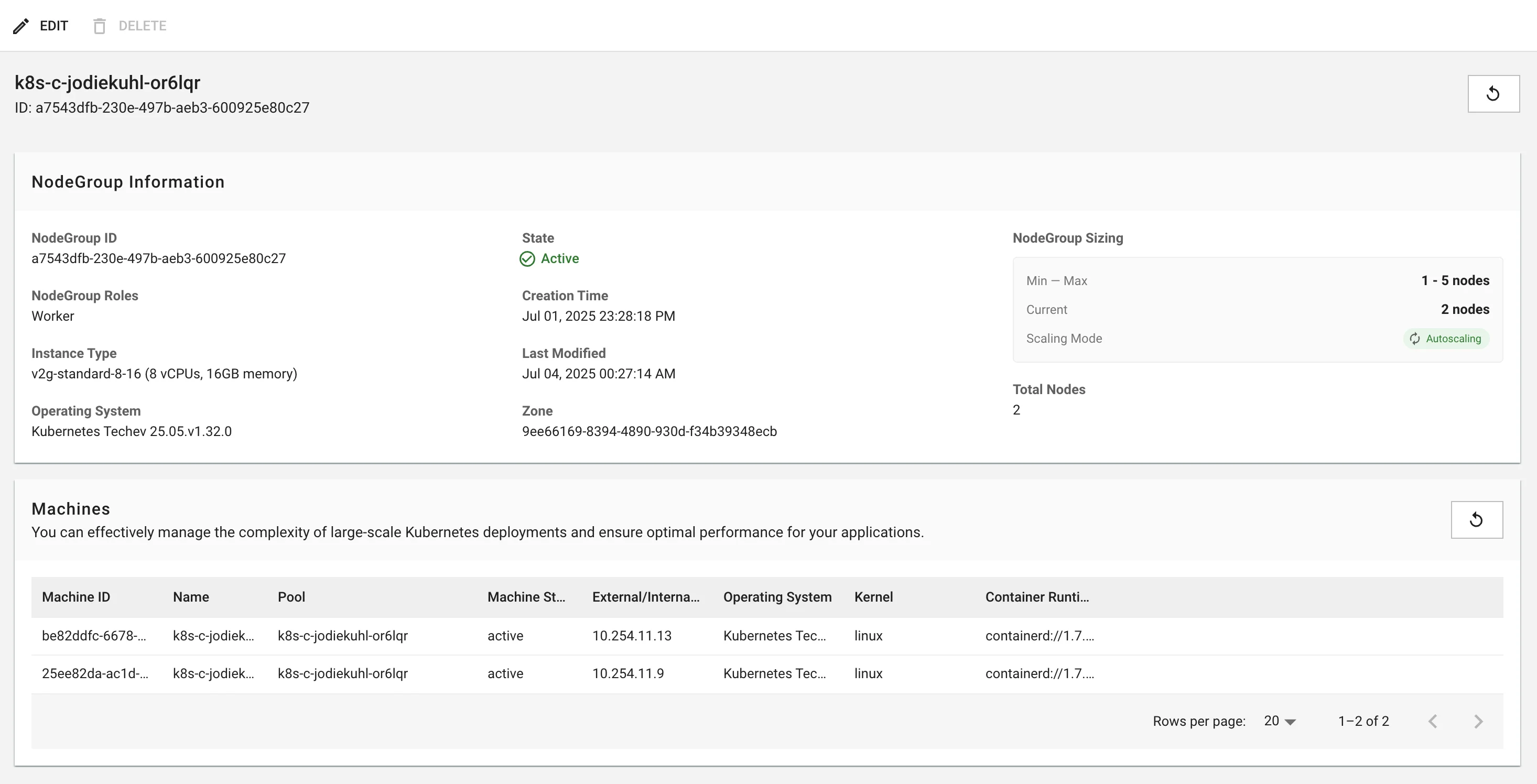

NodeGroup Detail View
Click any NodeGroup ID to access detailed information.
NodeGroup Information
- NodeGroup ID: Unique identifier and current state
- Instance Type: Hardware specs (vCPUs, memory)
- Scaling: Min-Max range and current node count
- Creation Time: Deployment timestamp and zone
Machines Section
Shows individual nodes with their details:
- Machine ID: Unique node identifier
- Status: Current state (active/inactive)
- IP Addresses: External and internal IPs
- Runtime: Container runtime and OS information
